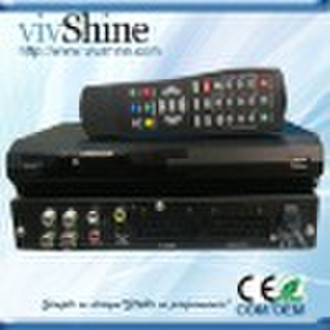

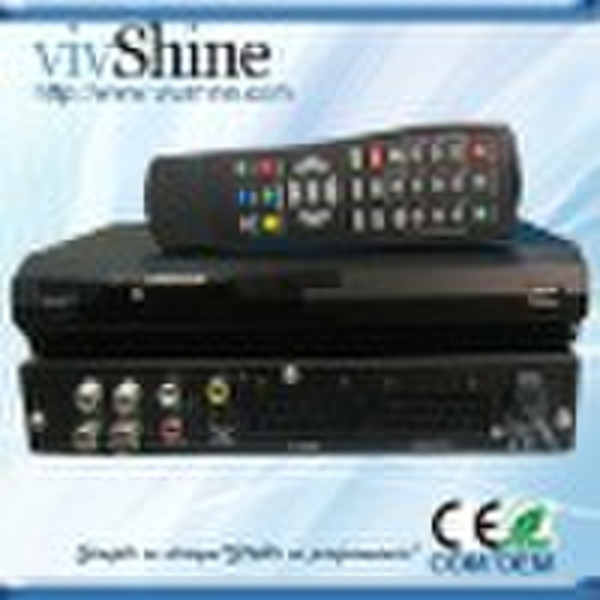

Terrestrial&Sat twin tuner COMBO Receiver

TERRESTRIAL&SAT TWIN TUNER COMBO RECEIVER DVBTS-B5 Key Parts System solution: SHPE1003 DVB-T: Tuner: Maxlinear5007 DVB-S: Tuner: intel CE5039 Demo: SPHE6610 DTV Functions DVB-T: Fully compliant with ETS 300744 & NorDig Unified V1.0.2 specifications for DVB-T reception 2K & 8K COFDM Modes supported IF-center frequency 36.166MHz Modulation:QPSK,16QAM,64QAM Code Rate:1/2,2/3,3/4,5/6,7/8 Guard Int:1/2,1/8,1/16,1/32 FEC:Reed Solomon & Viterbi RF frequency range: VHF low 47MHz – 159MHz VHF high 162MHz – 444MHz UHF 448MHz – 861MHz UHF only 474MHz – 861MHz RF-Loop Through Range:45MHz – 862MHz Channel bandwidth:7MHz/8MHz VIDEO Standard ISO/IEC 13818-2 MPEG-2 MP @ ML (Data Rates Up to 15Mb/s (720*576)) Video resolution Max 720*576 AUDIO Standard ISO/IEC 13818-3 (Sampling Frequency 32, 44.1, 48 KHz) Convenient User Interface supports Multi-language Character-sets Powerful and highly effective EPG function Picture in Graphics (PIG) support PAL-NTSC Auto-conversion system Stores up to 999 programs and keeps in memory while power-off Powerful program edit abilities (add, favorite, sort and remove) Support automatic and manual search Parental Lock for Channel & Menu DVB-S: Fully MPEG 2 / DVB-S compliant, MCPC/SCPC, C/KU reception 6000 Channels Memory and 150 programmable satellites 7 favourite channel group selection and parental lock Multi language menu Channel sorting function (Satellite, Scramble, FTA, Name) Power Scan (blind search) with complete parameter control Manual PID scan function Timer function for Sleep / Wake Up / Channel Reminder DiSEqC1.0/1.2 PIG (Picture in Graphic) function ZOOM In/Out function Full EPG (Electronic Program Guide) daily & weekly Channel Editor and Program Loader for easy editing and software download Teletext supported by OSD and VBI Full Parental Control Data Transfer: by USB USB FUNCTION USB 2.0 HOST Multi Media PALYBACK : MP3/WMA/JEPG/MPEG-1/MPEG-2/MPEG-4 Support PVR with USB Timing record (when power on) Power: Wide range AC power supply (110 240V, 50/60Hz) Input RF input connector:IEC female LNB input connector Infrared remote control receiver window Output RF output connector:IEC male LNB out put connector(optional) 1/2*SCART (optional) RCA right/left Audio S video Other functions Auto search 4:3, 16:9 Screen Format Selectable 256 Color On Screen Display Support PAL,NTSC Support EPG Multi language OSD. Support digital Radio Support SCART software update Local software upgrade via the USB(optional) Full plastic housing Parameters and Standards Operate temperature:22C+-2C Relative humidity:60%+-10% RF-input termination:75 ohms RF-output termination:75 ohms Input signal level:- 77dBm - 15dBm( 64QAM, Code Rate 2/3, G/I 1/32, Gaussian ch.) Audio Sampling Frequency 32, 44.1, 48 KHz Audio Channel Left, Right, Stereo Audio Output Frequency:20 20000 Hz(+-3dB) S/N:>=80dB Video Output Impedance:75 ohms Video Output Level:1Vp-p Weight: Dimension: 220mm*132mm*38mm Accessories Remote controller User guide A pair of AAA batteries
